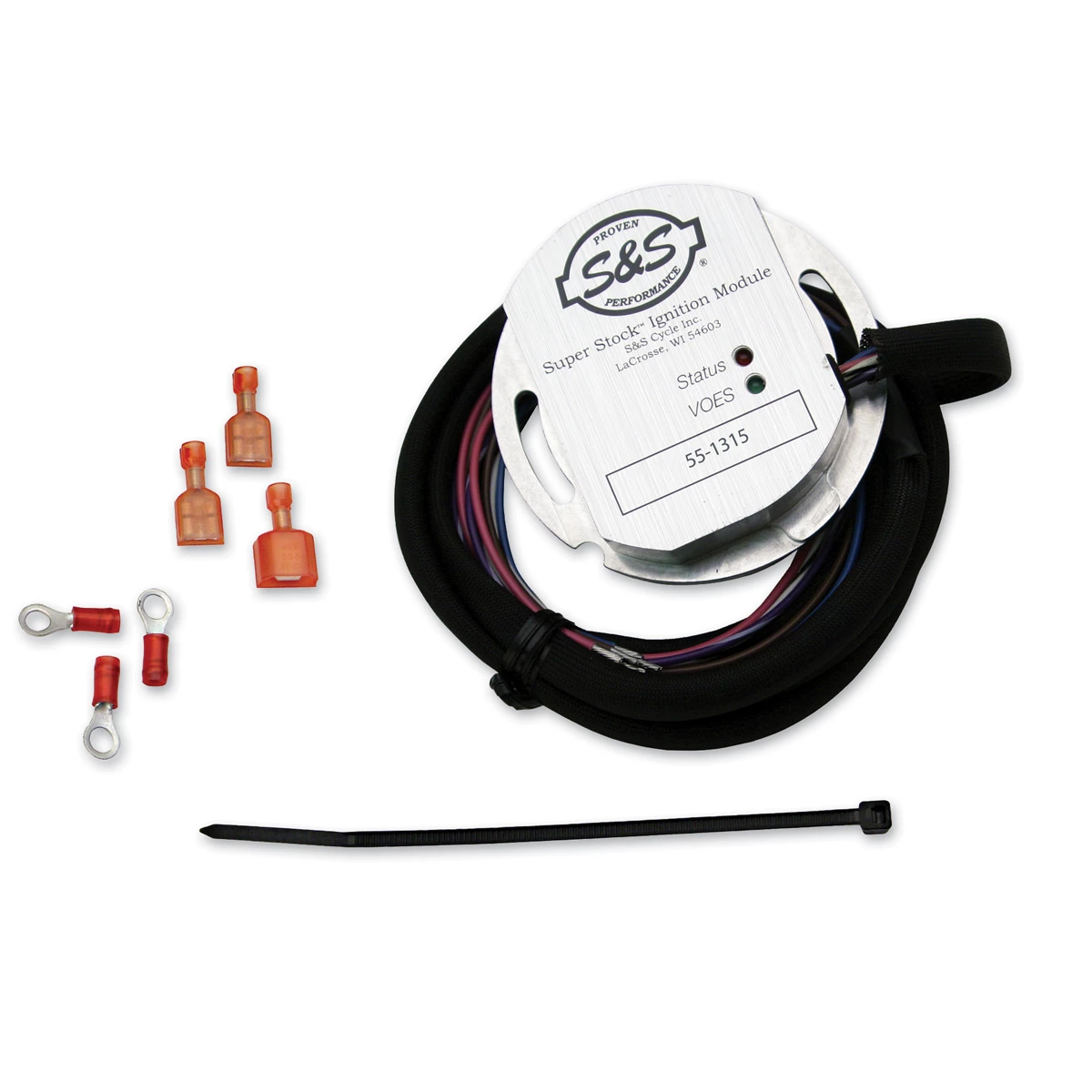

S&S Cycle V100, V107, V113 Super Stock Ignition Module

• New updated modules can be set to kick-start or electric-start mode by an S&S dealer using the Super Stock diagnostic cable and software

• Electric-start mode allows the pre-ignition cranking to be set anywhere from 1 to 4 engine revolutions (only available with current modules – earlier modules cannot be updated)

• This Pre-programmed ignition is custom tailored for specific S&S V100, V107, V113 engines – no need for adjustments

• Single fire operation – requires a single fire coil for single spark plug applications

• Dual plugged applications require a pair of two tower coils or a single four tower coil

• Minimum 3.0 ohms primary resistance

• Overload and short circuit protected

• VOES switches to less aggressive curve under load or hard acceleration

• 6300 rpm rev-limiter

• 24-hour break-in rev-limiter – prevents damage during break-in

• Data logging diagnostic capabilities

• Keep in mind that the curves are preset for a specific S&S engine, and that modules intended for one engine may not yield optimum results when used on another configuration.

• Designed for S&S V100, V107, V113 engines
